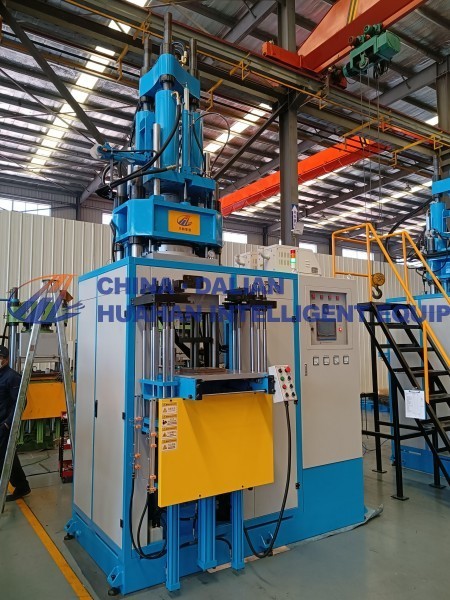

200T Double-Head Vertical Vacuum Vulcanizing Press

The double-head vertical vacuum vulcanizing press demonstrates significant advantages in efficiency, quality, space utilization, and cost control through technological integration. It is particularly suitable for the rubber products industry, where high product consistency and fast production rhythms are required. When selecting a specific model, it is essential to consider production capacity needs, product specifications, and process parameters to further optimize equipment configuration.

Key words:

Huahan Intelligence

Classification:

Vertical rubber injection molding machine

Email:

sales@tungshin.cn

Product inquiry

Related Products

Product Description

Double-Head Vertical Vacuum Vulcanizing Press - Technical Parameters:

1. Model: 200T Double-Head Vertical Vacuum Vulcanizing Press
2. Type: Double-head, vertical, vacuum-assisted
3. Clamping Force: 200 tons (adjustable)
4. Platen Size: Customizable (e.g., 1200mm x 1200mm or as required)
5. Vacuum Level: Up to -0.1 MPa (99% vacuum degree)
6. Heating Method: Electric or steam heating
7. Temperature Range: 0°C to 200°C (adjustable)
8. Control System: PLC-based automatic control with touchscreen interface
9. Mold Cavities: Dual cavities for simultaneous production
10. Cooling System: Water or air cooling for rapid mold cooling
11. Power Supply: 380V, 50/60Hz (customizable)
12. Dimensions: Compact design, customizable based on platen size
13. Applications: High-precision rubber products, such as seals, gaskets, O-rings, and automotive components

This press is designed for high efficiency, precision, and consistency, making it ideal for industries requiring fast production cycles and superior product quality.

Note: All specifications are customizable based on actual requirements.
