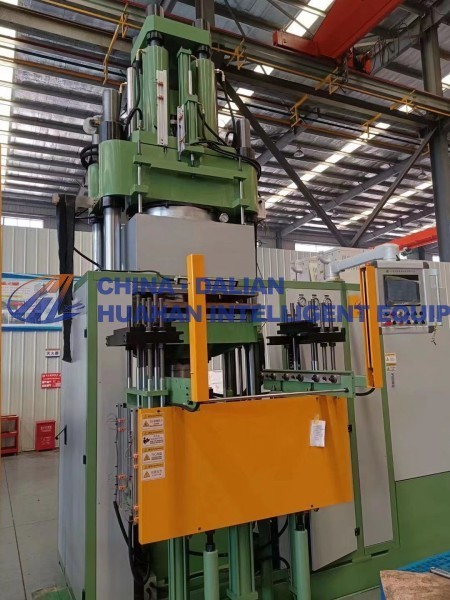

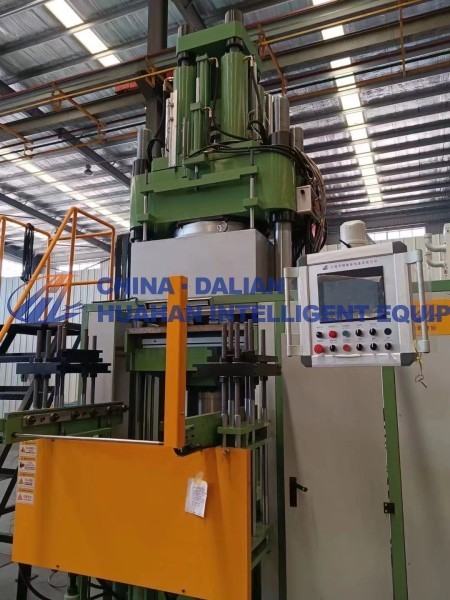

350T Vertical Vacuum Injection Molding Machine
Key words:
Huahan Intelligence
Classification:
Product Description
Technical Specifications：
Type: Vertical clamping, vacuum-assisted
Clamping Force: 350 metric tons
Injection System:
✓ Screw diameter: 45-90mm (customizable)
✓ Max injection pressure: 200MPa
Vacuum Level: ≤ -0.095MPa (95% vacuum degree)
Platen Size: Standard 800×800mm (customizable up to 1200×1200mm)
Key Features：
1. Vacuum Chamber
Eliminates air bubbles for defect-free products
Auto-locking seal with ≤0.01mm leakage
2. Precision Control
Temperature accuracy: ±0.5°C (range: 20-200°C)
Multi-stage injection speed control (0.1-300mm/s)
3. Industry Applications
Automotive: Seals, vibration dampers
Medical: Silicone implants, drug delivery devices
Industrial: High-voltage cable joints, aerospace gaskets
(For rubber/thermoset materials - provide compound specs for configuration advice.)
