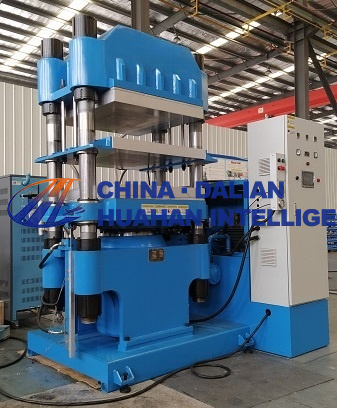

300T 900×900×2 Single-Station Rubber Thermoforming Press

A compact yet powerful hydraulic press with 300-ton clamping force, designed for precision molding of rubber products. Features dual-daylight opening (900×900mm platens) for efficient multi-layer production. Equipped with PLC-controlled heating (150-200°C) and pressure systems, ideal for manufacturing seals, gaskets, and industrial rubber components. Offers semi-automatic operation with optional vacuum or automation upgrades.

Key words:

Huahan Intelligence

Classification:

Rubber hot press forming machine

Email:

sales@tungshin.cn

Product inquiry

Related Products

Product Description

Technical Specifications:

Model: 300T Single-Station Thermoforming Press

Type: Hydraulic rubber molding machine

Clamping Force: 300 metric tons

Platen Size: 900×900 mm (standard, customizable)

Daylight Opening: 2 layers (adjustable height)

Heating Method: Electric/steam/oil heating (150-200°C)

Control System: PLC-controlled with touchscreen interface

Operation: Semi-automatic or automatic cycle

Key Features:

1. High-Precision Molding: Ensures consistent product quality with uniform pressure and temperature distribution.

2. Efficient Production: Single-station design optimized for medium-volume rubber part manufacturing.

3. Durable Construction: Reinforced steel frame withstands continuous high-pressure operation.

4. User-Friendly: Programmable curing parameters with data recording capability.

Typical Applications:

Rubber seals & gaskets

Automotive vibration dampers

Industrial rubber components

Silicone product molding

Optional Configurations:

Vacuum system (for bubble-free products)

Quick-mold change mechanism

Robotic part extraction

Note: "×2" denotes two daylight openings for multi-layer molding. Custom platen sizes/thicknesses available.

For specialized requirements (e.g., food-grade/medical rubber production), additional configurations like clean-room compatibility can be specified.
